Bow-type FTTH Drop Fiber Cable(GJXFH)
- Brand: GT-Link
- Type: GJXFH
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Bow-type FTTH Drop Fiber Cable(GJXFH)
Application:
◆Used as access building cable
◆Used in indoor cabling especially used for FTTH
Description:

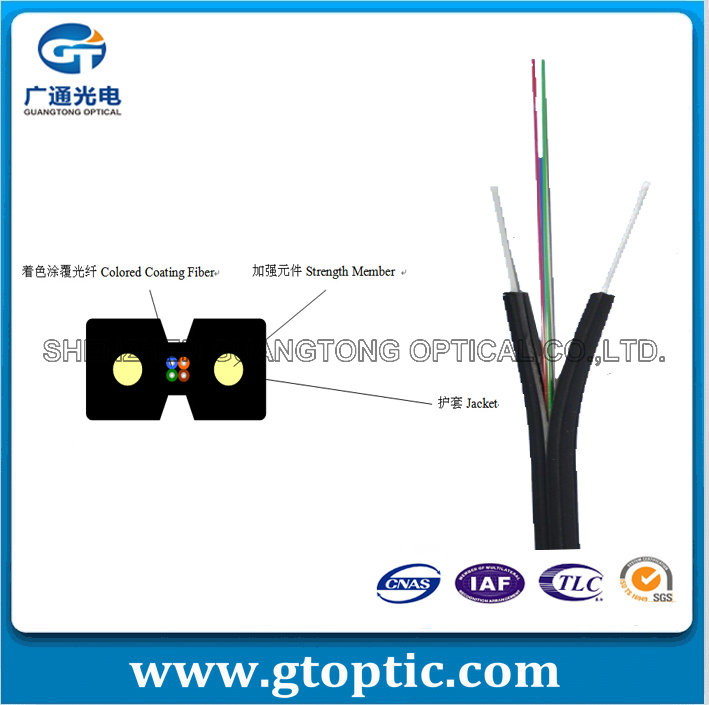

The optical fiber unit is positioned in the centre ,two parallel fiber reinforced plastics FRP are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath.
Characteristics:
Fiber-to-the-home broadband connections promise the next generation in connectivity to consumers
Technical Parameters:
|
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
|||
|
（MM) |
（KG) |
short term |
long term |
short term |
long term |
short term |
long term |
（℃） |
|
|
1 |
3.1*2.0 |
8 |
600 |
200 |
1000 |
300 |
20D |
10D |
40 |
|
Optical Characteristics: |
||||
|
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
|
A1b:62.5/125 |
||||
|
Singlemode |
G.652(A、B、C） |
B1.1:Conventional fiber |
||
|
G.652D |
B2: Zero dispersion shifted |
|||
|
G.655 |
B1.2 :Cut-off wavelength shifted |
|||
|
G.657（A1、A2 、B3） |
B4: Main technical data for positive |
|||
